Public API

Public API is the local WebSocket for external integrations: software on your machine sends JSON with a method field to open instrument sets, change linking, send notifications, and so on. Everything runs on loopback only (127.0.0.1); ProfitForge does not expose the port to the internet.

Enable: Application → Integrations → Enable integrations. User-facing tab overview: Integrations.

The MCP server (HTTP, AI assistants, read-only) is documented separately — MCP server.

---

WebSocket API

Connection point

• URL: ws://127.0.0.1:49152
• Port: 49152 (loopback only). If the port is busy at startup (another process, etc.), the app may try once to free it; if that fails, the server will not start — check the log.

How to enable

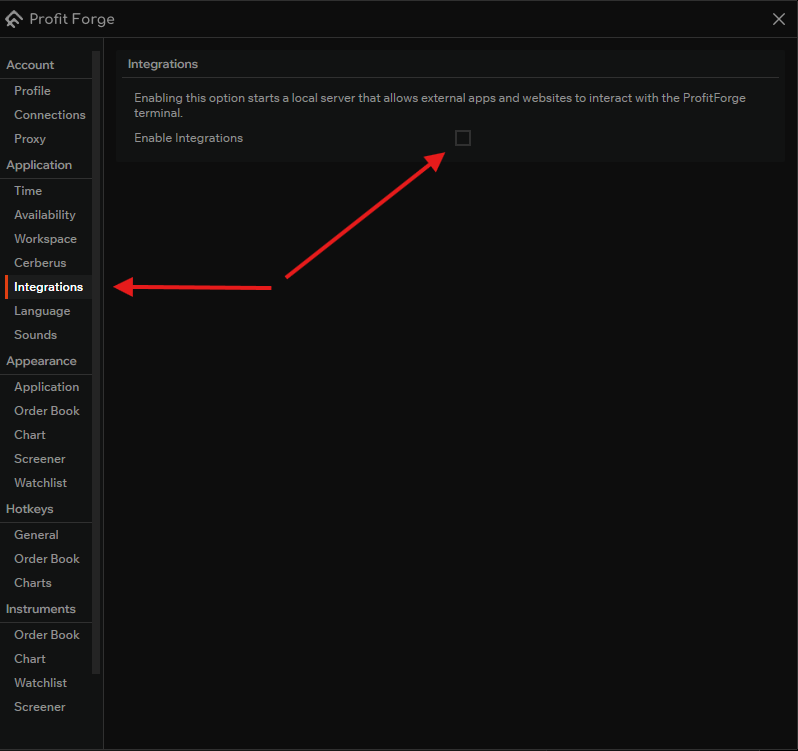

1. Application → Integrations.
2. Turn on Enable integrations (under Integration server).

Request and response format

• Request: JSON with a method field and other fields as needed (see Reference and method pages).
• Success: {"status":"ok"}
• Error: {"status":"error","error_code":<number>,"message":"..."} — human-readable text stays in message; stable programmatic handling uses numeric error_code (current codes 1000–1008; see Reference — Error responses).

Methods

Method	Description
assign	Update the linked pair for a color. Does not open a new chart/set.
open	Open an instrument set (one exchange, symbol). Optional linking_type like the watchlist.
open_aggregated	Aggregated set for one display symbol across exchanges; optional title / extra.title.
notify	Notification (title, body).
ping	Connectivity check.

assign and open: different jobs — not a required “first one, then the other” chain.

Full field list and enums — in Reference.

---

See also

• MCP server — separate protocol and port for MCP clients.
