Integrations

The Integrations tab (in settings, under Application) controls two independent features on one screen:

1. Integration server — local WebSocket: scripts, sites, and apps on your PC can control the terminal (opening instrument sets, link colors, notifications, ping).
2. MCP server — optional local HTTP (Model Context Protocol): compatible AI assistants invoke read-only tools (quotes, order book, candles, screener data, funding, etc.). Orders are not placed through MCP.

Sync: the Enable integrations flag is part of normal profile configuration and syncs with your account. MCP enable + bearer token are stored only on this device (local app data), not sent to the cloud.

---

Integration server

Used for integration via Public API over WebSocket: JSON messages with a method field to ws://127.0.0.1:49152.

Capabilities

• Open a new instrument set (open, open_aggregated) or change the linked symbol for a link color (assign).
• Send a notification (notify) and check connectivity (ping).

Full contract — Public API — WebSocket overview, enums — Reference (exchanges, market_type, linking_type, symbol format).

Connection point

URL	ws://127.0.0.1:49152
Access	Loopback only; ProfitForge does not expose the port to the internet.
Port	Default 49152. If the port is busy at startup, the app may try once to re-bind; otherwise the server will not start — check the log and free the port.

How to enable

1. Settings → Application → Integrations.
2. Under Integration server, turn on Enable integrations.

The WebSocket server runs while ProfitForge is running and this option is on. Turn it off if nothing should connect.

Message format (short)

• Request: JSON with at least "method": "<name>"; other fields depend on the method.
• Success: {"status":"ok"}
• Error: {"status":"error","error_code":<number>,"message":"..."} — full list of codes in Reference (1000–1008: invalid JSON, missing method, unknown method, validation errors, workspace errors, etc.).

Methods (short)

Method	Purpose
assign	Change the linked symbol for a color — does not open a new set by itself.
open	Open a new set (one exchange / symbol); optional linking_type like the watchlist.
open_aggregated	Aggregated set for one display symbol across exchanges; optional title / extra.title.
notify	Notification (title, message).
ping	Connectivity check.

assign and open: assign — when you need to change the symbol in an already used link slot; open / open_aggregated — to create a new set. Not a required two-step chain.

---

MCP server

Use when an MCP client (IDE assistant, mcp-remote, etc.) should get market context through tools, not through the WebSocket API above.

Relation to the integration server

	Integration server	MCP server
Transport	WebSocket	HTTP (Streamable MCP, path /mcp)
Typical use	Your code controls the terminal UI	Agent requests data (read-only tools)
Toggle	Enable integrations	Allow local MCP server
Authorization	(localhost is enough)	Authorization: Bearer <token> required

Toggles are independent — you can enable either or both separately.

How to enable (settings)

1. Application → Integrations → Local MCP server → Allow local MCP server.
2. Copy MCP URL (fixed: http://127.0.0.1:17890/mcp). Prefer 127.0.0.1 over localhost if the client goes IPv6-only.
3. Full secret — Copy token button; the field shows a mask only.
4. New token — rotation; update all clients immediately.

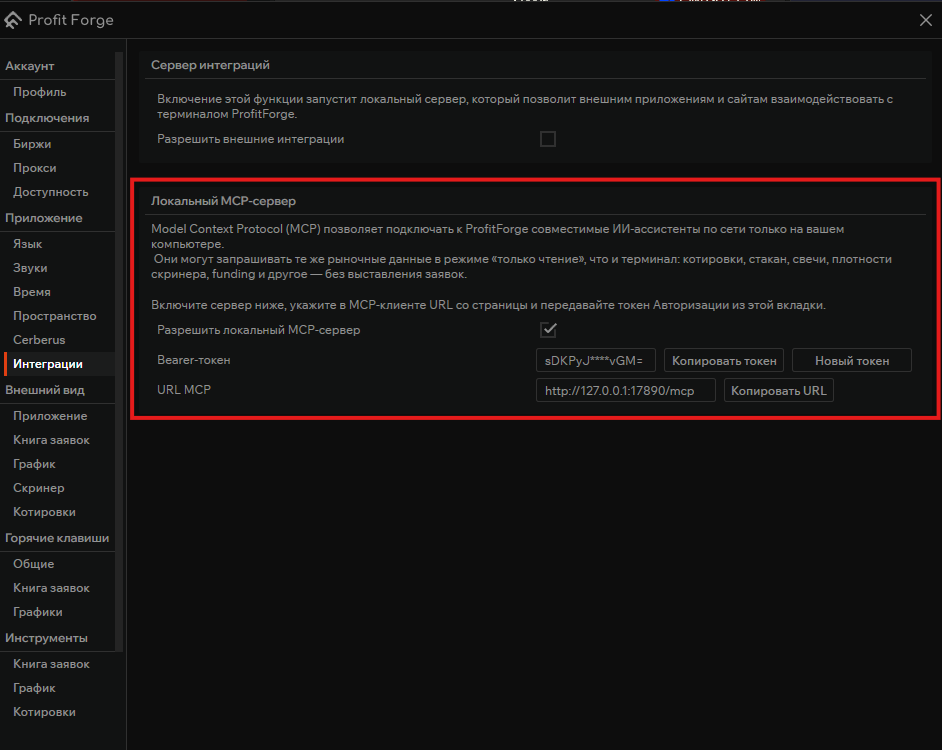

Russian UI

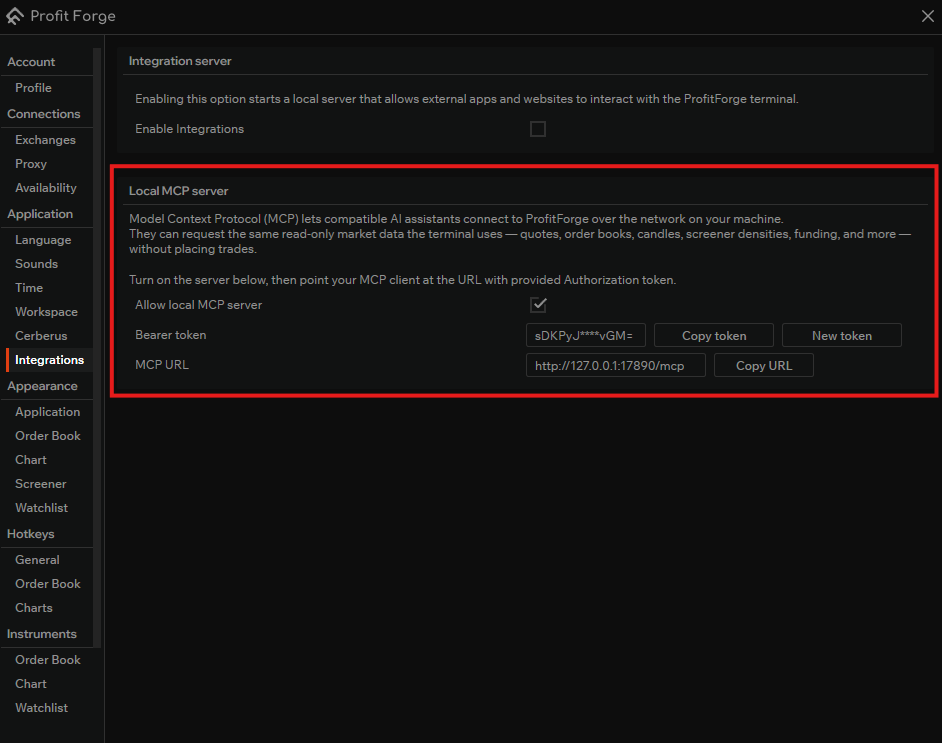

English UI

Protocol documentation

Details: MCP server (Public API).
